IRS server installation

To install the server version of IRS, a server and a client PC are required. Part of the software is installed on the server and another part is on the client PC.

• Downloading the IRS installation package
• Installing IRS on the server
• ​Downloading and installing the licensing service on the server
• Installing IRS on the client PC
• Setting up a connection between the client PC and the local IRS server

Downloading the IRS installation package

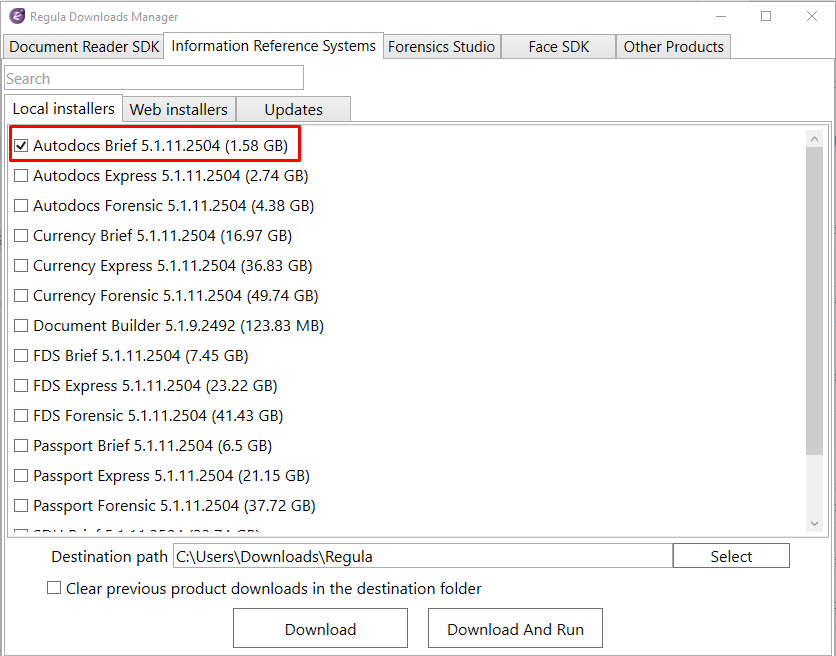

• Download the installation package of the required IRS product (e.g., Autodocs Brief) using Regula Downloads Manager.

Installing IRS on the server

• Open the downloaded folder and run the file autorun.exe.

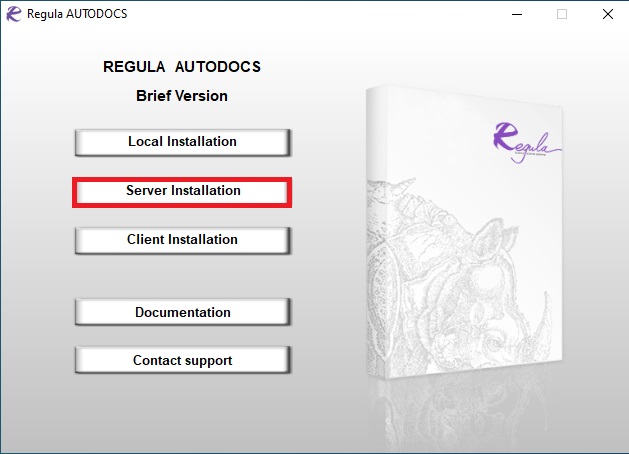

• In the opened window, select Server Installation and follow the instructions.

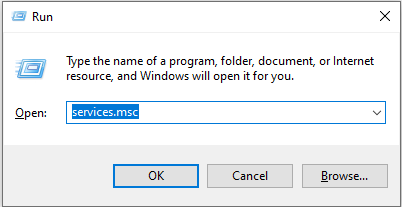

• Once IRS is installed, open the standard Windows application Services. To do this, press Win+R. In the opened window, type services.msc and click OK.

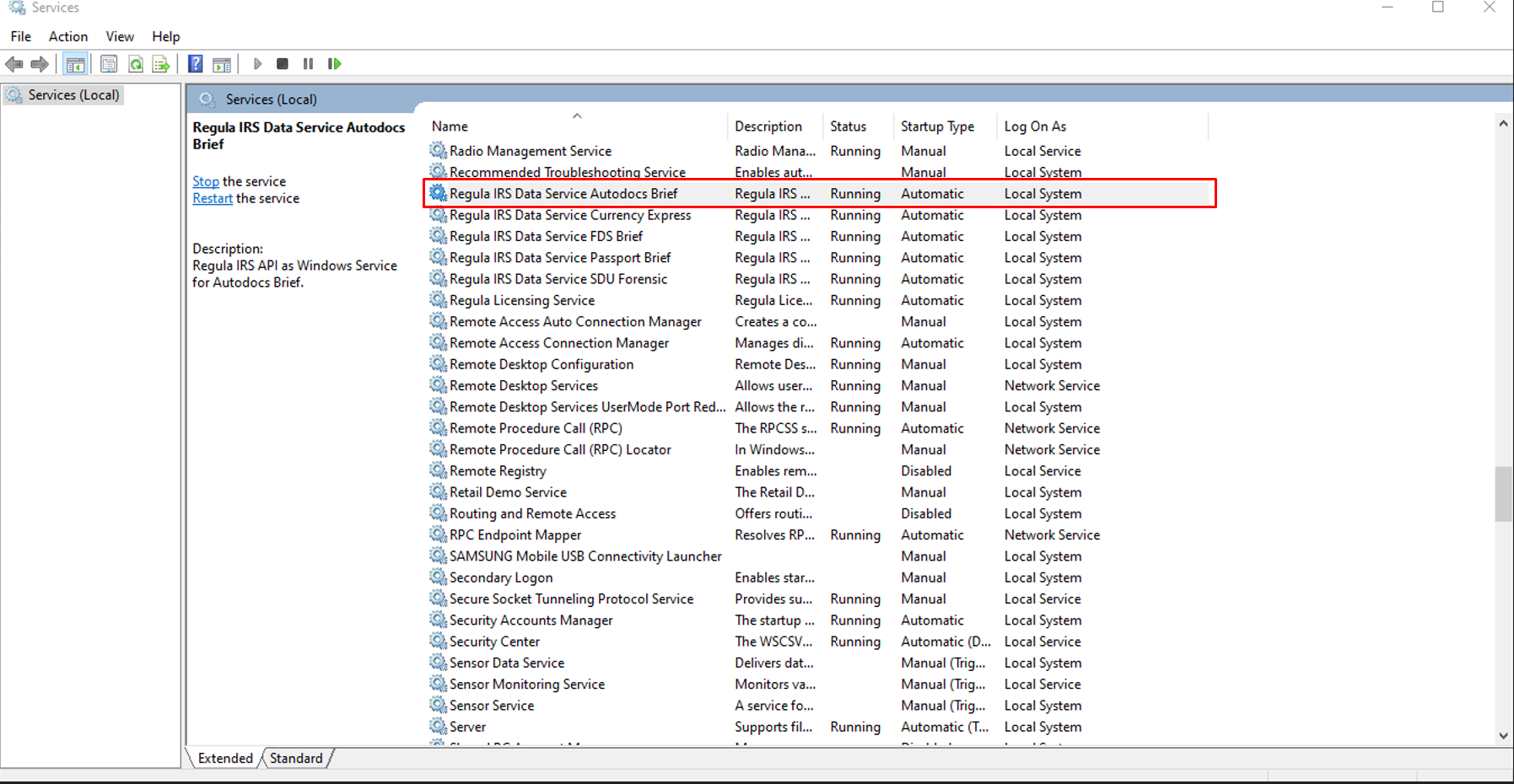

• Make sure that Regula IRS Data Service Autodocs Brief is up and running.

​Downloading and installing the licensing service on the server

• Download the Regula Licensing Service installation package using Regula Downloads Manager (tab Other products -> Regula licensing service).
• Install the downloaded Regula Licensing Service (this service is only installed on the server).
• After installation, open the application Services.msc and make sure that Regula Licensing Service is running.

Installing IRS on the client PC

• Open the downloaded folder and run the file autorun.exe.

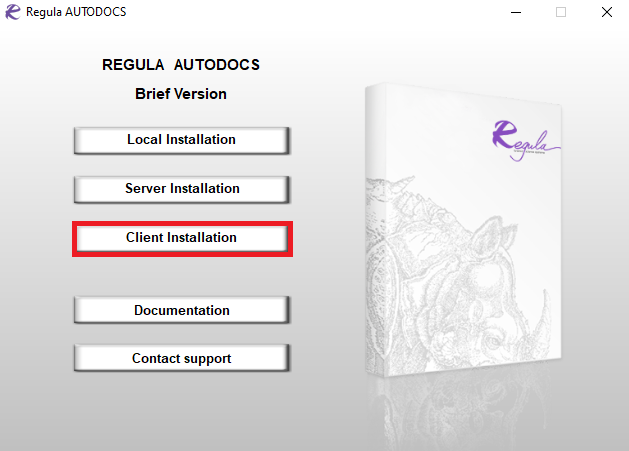

• In the opened window, select Client Installation and follow the instructions.

Setting up a connection between the client PC and the local IRS server

• Run the Regula Licensing application (it is installed together with IRS) from the start menu and make sure that the Network dongle: XXXX tab is displayed in the application window, where XXXX is the serial number of the product license.

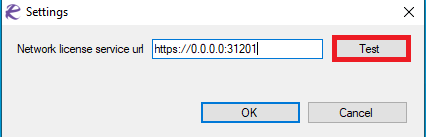

• If the Network dongle: XXXX tab is not displayed, click on Settings on the right side of the panel in the Regula Licensing application and enter the server URL and port 31201: https://server_ip_address:31201

• When the installation is complete, run the Autodocs Brief application on the client PC (double-click the shortcut on the desktop) and check that it works properly.
